Week 8: Clean Up & Draft

-
Today, we organized everything that we are using for our project. We examined the treadmill and brought anything that we did not need to the dumpster in the back of the school. Everything is now neatly organized in a bin under the table.

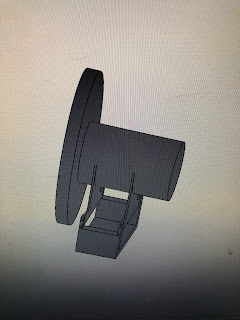

We also made the motor on SolidWorks and included the aluminum base that we need. We made very specific dimensions. Keep up the awesome work team!
